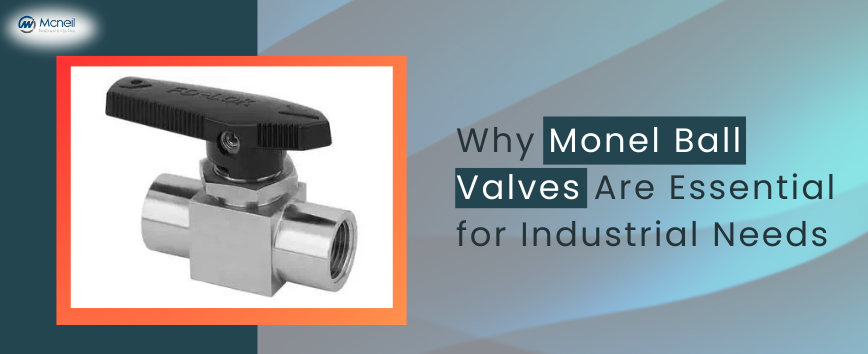

When it comes to selecting the right valve for critical applications, the Monel Ball Valve stands out as a top choice, particularly in industries that demand exceptional corrosion resistance and durability. Mcneil Instruments is a leading Hydraulic A494 M35-1 Alloy 400 Trim Ball Valve Manufacturer, Supplier, and Exporter, specializing in providing high-quality valves designed to withstand the harshest environments.

Monel alloy, a robust blend of nickel and copper, imparts extraordinary properties to the valve. This alloy exhibits remarkable resistance to a wide range of corrosive substances, including seawater, brackish water, and even aggressive chemicals.

What Makes Monel Ball Valves Unique?

Monel Ball Valves, especially those made from Alloy 400, are renowned for their exceptional corrosion resistance. This makes them ideal for use in challenging environments like seawater, brackish water, and even fast-flowing streams. The Alloy 400 variant offered by Mcneil Instruments not only excels in marine applications but is also a go-to choice in the petrochemical and oil and gas sectors.

Why Choose Monel 400 for Your Applications?

The Monel 400 Ball Valve is particularly noted for its resistance to stress-related corrosion cracking, especially in freshwater environments. This makes it an excellent choice for industries where reliability and longevity are crucial. Additionally, when used in a de-aerated state, the Monel Trim Ball Valve can resist both hydrochloric and hydrofluoric acids, further expanding its application range.

Applications of Monel Ball Valves

The exceptional properties of Monel ball valves make them indispensable in numerous industries:

  • Marine Industry: Withstanding the corrosive effects of seawater, making them ideal for marine applications.
  • Petrochemical and Oil & Gas: Handle corrosive chemicals and high-pressure environments with ease.
  • Chemical Processing: Ideal for processes involving aggressive chemicals.
  • Pulp and Paper Industry: Resist corrosive substances found in the pulp and paper manufacturing process.

Mcneil Instruments’ Monel Ball Valve Offerings

Mcneil Instruments provides a comprehensive range of Monel ball valves to cater to diverse industry needs. Our product line includes:

  • Monel 400 Process Control Ball Valves: Available in sizes ranging from 1/2″ to 4″, with various thread, connection, and pressure class options.
  • Monel UNS N04400 Instrument Ball Valves: Precision-engineered for instrumentation applications, offering superior performance and reliability.
  • ASTM A494 M35-1 Ferrule Ball Valves: Designed for specific media and temperature requirements, ensuring optimal functionality.
  • Monel 400 High Pressure Ball Valves: Capable of handling extreme pressures and temperatures.

Our valves are manufactured using ASTM A494 Alloy 400 material, known for its high strength and durability. The Monel UNS N04400 material ensures that these valves meet the stringent standards required by industries such as oil and gas, chemical, and marine.

Mcneil Instruments’ Range of Monel Ball Valves

At Mcneil Instruments, we offer a wide range of Monel 400 Process Control Ball Valve sizes and configurations to meet diverse industrial needs. Here’s a quick overview:

  • Sizes: 1/2″ to 4″ (DN25-DN200)
  • Thread Types: NPT, PT, BSPP, G
  • Connections: Welded, Socket, Clamped, Flanged, Threaded
  • Pressure Class: PN10/16
  • Media Compatibility: Oil, Gas & Water
  • Temperature Range: Medium Temperature
  • Operation Methods: Manual, Electric Actuator, Pneumatic

Detailed Specifications and Applications

The Monel 400 Ball Valve is designed in accordance with the highest industry standards:

  • Pressure & Temperature Limits: As per ANSI/ASME B16.34
  • Manufacturing Process: Forged bar stock ensures durability and reliability.
  • Seal Materials: Options include PPL, PTFE, and PPL Soft Graphite, providing versatility in application.
  • Leakage Rate: Soft Seal ensures zero leakage, with a 100% leak test performed.

These valves are also available in various configurations such as 2-Way, 3-Way, 4-Way, 5-Way, and more, allowing for flexibility in installation and operation.

Key Benefits of Monel Ball Valves

  • Exceptional Corrosion Resistance: Monel ball valves excel in combating corrosion, ensuring long-lasting performance in harsh environments.
  • Durability: Built to last, these valves withstand the test of time, reducing maintenance costs and downtime.
  • Versatility: Suitable for a wide range of applications, from marine to petrochemical and oil and gas industries.
  • Reliability: Mcneil Instruments’ Monel ball valves are engineered for precision and reliability, delivering consistent performance.

Why Mcneil Instruments?

When you choose Mcneil Instruments for your Monel Ball Valve needs, you’re not just buying a product; you’re investing in quality, expertise, and reliability. We ensure that all our products meet the highest standards of performance, backed by our extensive industry experience. Our diverse product range, which includes various approvals and certifications, guarantees that we can meet your specific project requirements.

For detailed information on pricing, configurations, and how Mcneil Instruments can assist with your next project, don’t hesitate to contact us today.

With Mcneil Instruments, you’re choosing not just a supplier but a partner in success.
